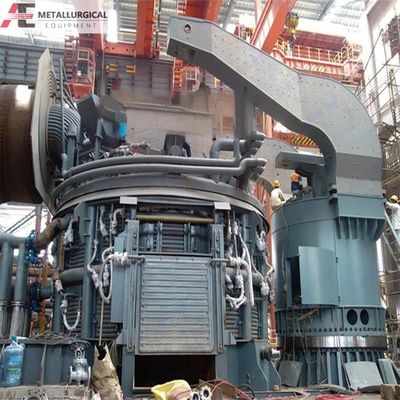

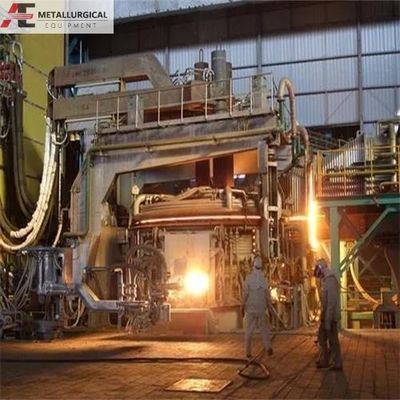

Electric Arc Furnace

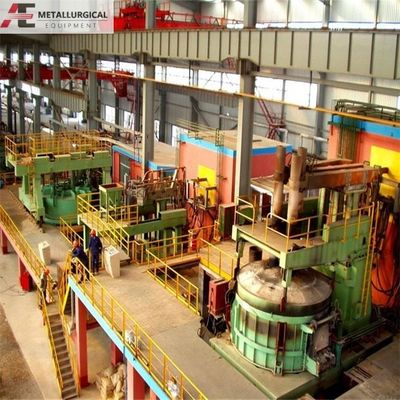

Electric Arc Furnace for Smelting Steel Scrap and CCM in Hot Rolling Mill Plant
Product Overview
Electric arc furnace is using electricity as fuel source, and utilizes the arc high temperature produced by electrode and furnace charge to heat and melts the furnace charge. It is widely using in production of normal steel, high quality carbon steel, various alloy steel, stainless, various ferroalloys. It is the key equipment in steel making factories, foundry factories, ferrous alloys making factories and etc.
Characteristic:
1,Smelting temperature is flexible to be controlled, meet different steel grade production needs.
2,High heat efficiency, atmosphere inside furnace can be controlled.
3,Can remove the phosphorus, sulfur, oxygen and other impurities and improve steel quality.
4,Easy to control the chemical composition of steel, stable and high recovery rate of alloys.
5,Equipment is simple and shorter technological process.
Adoption of new technology:
1,Optimization design
2,Tubular water cooled furnace wall and furnace lid
Eccentric bottom tapping (EBT)
Copper-steel combined electrode arm
3,Cluster type large sectional area water cooled cables
Optimize large current system structure (energy-saving type)
Proportional valves hydraulic system
Basic level (PLC) + procedure level ( Industrial control computer) Control system
Frequency control technique
Network technique
Incuding:
1. Furnace body 2 .Tilting mechanism 3. Furnace cover 4. Furnace bracket
5. Furnace cover lifting and rotating mechanism
6 .Electrode lifting mechanism 7. Short Net System 8 Cooling system
9 .air compression system 10. Upright bracket
11 .Maintenance platform 12. platform 13. Electrode extension device
14. Hydraulic system 15. Transformer 16. Furnace door oxygen lance device
17. Furnacecluster oxygen lance 18. High voltage cabinet
19. Low voltage power supply system
20. Computer and PLC control system
Main Technical Specifications:
|
Type |
Rated capacity |
Max capacity |
Furnace Shell inner diameter ( MM) |
Electrode diameter (MM) |
Transformer capacity(KVA) |
|
EAF-5T |
5 |
10 |
3200 |
300 |
2500-4300 |
|
EAF-10T |
10 |
18 |
3600 |
350 |
5500-8000 |
|
EAF-15T |
15 |
24 |
3800 |
350 |
8000-12500 |
|
EAF-20T |
20 |
30 |
4000 |
400 |
9000-12500 |
|
EAF-25T |
25 |
35 |
4200 |
400 |
12500 |
|
EAF-30T |
30 |
45 |
4400 |
400 |
12500-25000 |
|
EAF-40T |
40 |
55 |
4600 |
450 |
16000-30000 |
|
EAF-45T |
45 |
65 |
4800 |
450 |
16000-40000 |
|
EAF-60T |
60 |
85 |
5400 |
500 |
25000-60000 |
|
EAF-80T |
80 |
100 |
6100 |
500 |
30000-80000 |
|
EAF-100 |
100 |
120 |
6400 |
550 |
40000-80000 |
